使用用途与简单/Brief Introduction：

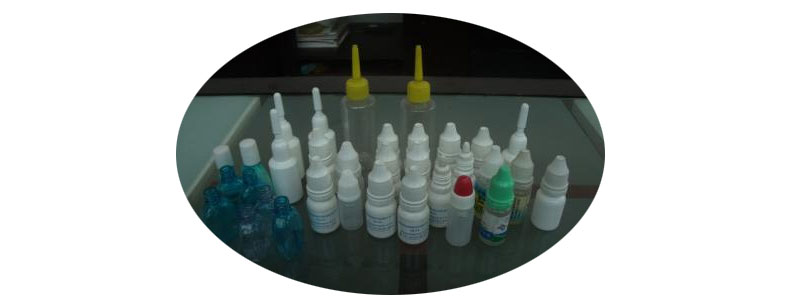

机器适宜于2-30ML各类所选材质的半圆扁形塑料制品或夹丝玻璃制瓶的眼蓝药水分装、电子设备烟油等小含水量分装.机器由高品牌定位功能精度气缸精度等级机购供应精度等级等分盘品牌定位功能上塞上盖;加速器度气缸传动链齿轮供应旋盖头的升降架;恒发动机功率旋盖;排泄泵计量检测检测分装;触摸屏调控.无瓶不分装,没加内塞,外盖.具品牌定位功能明确,传动链齿轮平稳性,防护小盖,计量检测检测准.实际操作简单易行等优缺。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

优势特点/Characteristic：

◆微网吧电脑更改、装量精确度高、基本操作简单方便。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆主机箱带速可开展无级变速变频柜可控硅调压。the mainframe running speed is stepless frequency conversion.◆生产销售量自然酶联免疫法操纵。the product quantity can be controlled. ◆许多告警报错用途(如低风压。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆自主停电的功能，对某一在轨道显示反复无灌装线、无内塞情况报告可自主停电。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

方法叁数/Main Technical Parameters：

可用于外形尺寸Filling Volume	2-30ml
产量程度Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
罐装计算精度Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
主动上塞率Stoppering rate	≥99%
汽源Air Supply	1.3 m3/h    0.4-0.8Mpa
最大功率 Power	2.0 kw
机子净含量Weight	550 kg
外型寸尺Dimension	1800*1000*1500mm
