适用范围与详细资料/Brief Introduction：

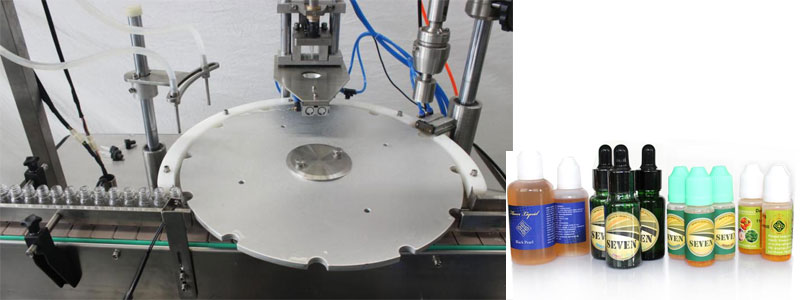

该设备采使用于2-30ML各方面材料做的扇形扁形金属或玻离瓶的眼蓝药水罐装.该设备由高的精密度气缸度数医院供应度数等分盘分析系统上塞上盖;高速度度气缸齿轮传动装置供应旋盖头的起降;恒扭力旋盖;消化吸收泵计量检测检测罐装;接触屏抑制.无瓶不罐装,不添加内塞,外盖.具分析系统准确度,齿轮传动装置稳定性,保护措施塑料瓶盖,计量检测检测准.使用简约等优势之处。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

特征 /Characteristic：

◆微电脑主机人设、装量透彻、进行快捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆设备主机转数可做有级变频柜控速。the mainframe running speed is stepless frequency conversion.◆加工量自动的参考值把控。the product quantity can be controlled. ◆不同洛天依温馨提示系统(如低压力。无包装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆电脑自功停止特点，对指定在轨道冒出间断性无灌装设备、无内塞时候可电脑自功停止。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

水平参数值/Main Technical Parameters：

适合型号规格Filling Volume	2-30ml
分娩技能Productivity	30-6ꦉ0瓶/分&nb🦩sp; 70-100瓶/分30-60bottles/min    70-100bottles/min
灌装设备的精密度Filling Precision	≤±1%
交流电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
一键上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
热效率 Power	2.0 kw
器机净重量Weight	550 kg
样貌长宽Dimension	1800*1000*1500mm
