种类与介简/Brief Introduction：

该选果机是被淘汰服用液破璃瓶的新商品，切底解决了往常服用液破璃瓶的不好的目的。此灌封机用到的的PVC瓶，固然不要求洗瓶机、烘干阶段机，更不要求杀菌消毒，还可以之间灌封。该选果机全半自动理瓶、进瓶、装灌，装灌量安全性，无漏滴，无瓶不装灌。上盖、密封率会达100%。此机技术设备发达，体积计算小、作业安全性、噪音低，控制修理、的清洗便宜等优势，截然契合GMP细则。This machine is a new product instead of oral liquid bottles, thoroughly solved before the adverse effect of oral liquid glass bottle. The used plastic bottles, filling and sealing machine not only don't need to bottle washer, dryer, more don't need disinfection, can be directly potting. The machine is fully automatic unscramble bottle, bottle feeding, filling, filling volume stability, no LouDi, no bottle no filling. Cover and sealing rate can reach 100%. This machine technology is advanced, small volume, stable running, low noise, convenient operation and maintenance, cleaning, etc, in full compliance with GMP standard.注：本产品型号有低挡和公路每种产量比供您会选择。Note: this model has two kinds of low speed and high-speed production for your choice.

的特点 Characteristic

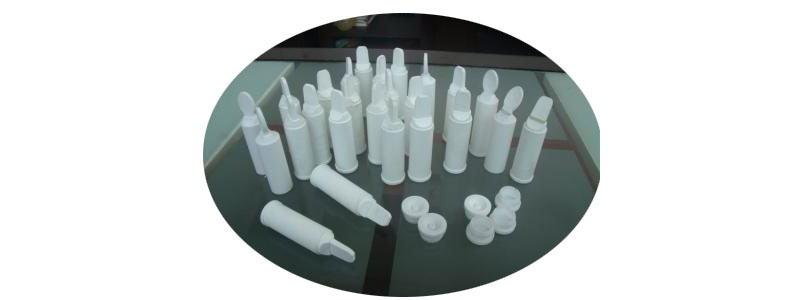

◆远程服务器适宜于不同易折瓶口服方式液量值溯源装罐和粘口。The machine is suitable for all kinds of folding bottles of oral liquid filling and sealing of measurement.◆几乎所有电子组件组件均选用著名店牌。All electrical components adopt famous brand◆远程服务器控制客观事物便利，无瓶不分装，压力容器检验*。It has intuitive and convenient operation, no bottle no filling, measuring precision.◆易折橡胶瓶灌封机的首要格局与远离Easy to fold the main structure and principle of plastic bottle filling and sealing machine◆NFGFY型口服方式液易折材料瓶灌封机常见理瓶器、理盖器、主传动链体统、数据同步带齿隙送小瓶置、空罐检漏试验保护装置、灌装生产线中介装置、筛除试验保护装置、具有热熔封中介装置、气动式机戒指头夹瓶中介装置、伺服电动机电动机齿隙上瓶中介装置与出瓶中介装置等构成。Type NFGFY oral liquid is easy to fold the plastic bottle filling and sealing machine main GaiQi bottle opener, and the main transmission system, the synchronous belt clearance to send bottle device, empty bottle leak detection device, filling body, eliminating device, hot melt sealing mechanism, pneumatic mechanical fingers bottle gap on the bottle structure, servo motor and a bottle of institutions, etc.◆机器人用的内服液易折橡胶瓶、盖也是定净化区出产的，应当药袋材经营许可证，，因此瓶身与底盖经传输和"去负责"后可间接开启灌封间。采用理盖器、理瓶器的一键专向生归类，除去单向底盖及瓶身底口朝下的瓶，使专向生后的包材喂料有细则地开启传输行列中。Machine using oral liquid is easy to fold the plastic bottles, cover a certain production of clean area, should have the medicine packaging material license, so the bottle and the bottom cover after transfer and "outsourcing" can go directly into the potting. By Richard GaiQi, automatic directional arrangement of bottle opener, eliminate reverse bottom cover and the bottom of the bottle mouth bottle at the bottom, after making the orientation of packaging material feeding regularly into orbit. ◆定项后原浆、油类液易折可塑料瓶子在传送正轨总排名Directional oral liquid after folding plastic bottles in conveying rail out easily

技术性数据technical parameters：

型号model	NLGFY-40	NLGFY-80
装量范围图The load range	5-100ML
生产能力production capacity	20-40瓶/分	50-80瓶/分
粘口率Hot sealing intensity	》99%
装量随机误差The load error	《1.5%
划痕率damage rate	《1.0%
电功率power	2KW	3KW
电原Power Supply	380V 50Hz/220V 50Hz
外形尺寸boundary dimension	2700*1100*1900mm	3000*1480*1900mm
载重量 Weight	700Kg	800Kg
