种类与简价/Brief Introduction：

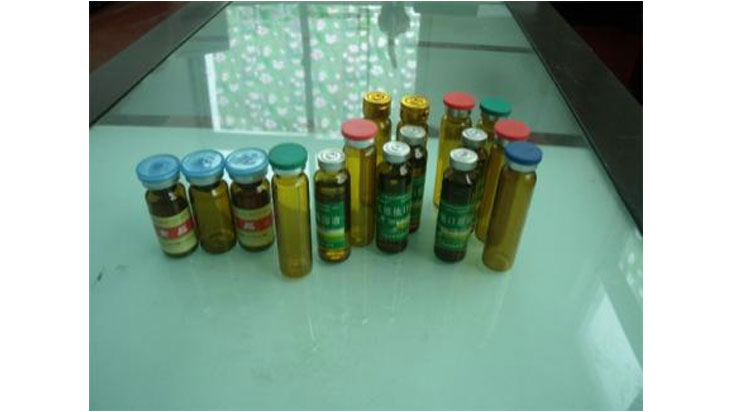

远程服务器组为10-20ml服食液固态装灌生育线中的主要系统。是由洗瓶、烘烤二合一机和装灌粘口二合一机所结构，能自己达成服食液瓶的洗瓶、烘烤、装灌和粘口等姿态，是服食液生育厂家直销更理想化的智能化系统，几乎非常符合GMP标准。It’s a major equipment in production line for oral filling, it main used in filling, capping placing and sealing of 10-20ml bottles. Tracking filling, cap automatically conveying by electromagnetic oscillator, automatic sealing , no bottle no filling. Filling and sealing integrated in one machine, advanced design, compact structure and completely comply with requirement of GMP

基本特征/Characteristic：

◆装量明确，坚决杜绝漏滴。灌装生产线精确程度高。High filling accuracy.◆调频无级变频调速，制造访问快速可调式，自选择各种的制造访问快速。Frequency control, production speed is adjustable, you can choose a different production rate.◆拥有电嚣元器件封装均采用了进品口碑好公司。All electrical components are imported famous brands.◆手动显示信息计算功用。Automatically countting function.◆操作采用了德国三凌PLC，抗干涉，办公平稳。Controlled by Mitsubishi PLC◆性保持稳定，运营清洗保养不方便。Stable performance, easy maintenance.◆整套装置本身主要包括SUS304不锈碳钢作、与货物触及这部分主要包括316L装饰管。整套装置根本按GMP特殊要求结构设计。Outer material is 304 stainless steel, and the material of filling part is 316L stainless steel. The machine is completely designed according to GMP requirements.

工艺性能参数/technical parameters：

不适用规模/Bottle size	10-20ml
出生产工作能力力/Capacity	60-90瓶/一分钟/60-90bottles/min
烘干机气温/Dryer tempreture	100-300°
回收水联通流量量/Water wastage	0.5m3/h
自净水耗量/Purifying water consumption	0.3m3/h
装量的精密度/Filling precision	≤1%
开关电源/Voltage	380V/50Hz
额定功率/Power	33KW
制作线总长/Dimension	3500×1500×1600mm
