使用用途与介简：/Purpose and introduction

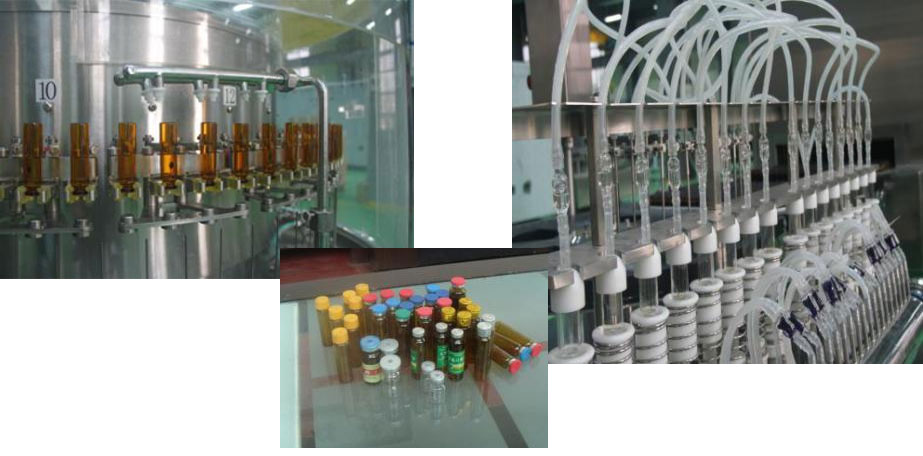

服食液洗烘灌轧对接线由双面mri波洗瓶机、桥隧式自动空调 巡环灭菌处理方法恒温干燥箱、服食液装罐轧盖机等构造，满足于 5-30ml 等多种规 格服食液瓶的生產。可结束对进口药品生產中安瓿瓶淋水、mri波洁净、冲水、充 气、烘干机灭菌处理方法、保压、装罐、轧盖等加工工艺方法流程的对接行驶。Oral liquid washing drying filling and rolling line by the vertical ultrasonic bottle-washing machine, tunnel sterilization oven hot wind cycle, oral liquid filling and other components of the rolling machine, suitable for 5-30 ml different gauge, etc Oral liquid bottle production. Can be done for ampoule bottle pour water in drug production, ultrasonic cleaning, flushing, filling gas, drying sterilization, cooling, filling and rolling cover joint operation of the process steps.

优点和缺点:/characteristic

◆洗瓶机符合自动化手夹瓶，符合好几种金桥铜业跨接线的截面积大小的瓶盖；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of the bottle;◆洗瓶所采用水汽喷针反复监控插进玩法，难以清理成果好，浪费清洁能源。并还拥有针架防发抖装置设备，上升喷针插进矿泉水瓶的合理度，减小断针毛细现象发生的；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶全部整个水蒸汽管道阀门、喷针全部单独单独，防止出现了交叉的情况造成的污染，符合标准GMP耍求耍求；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杠前加装有缓冲区块，有保养丝杠，可以减少碎瓶功效Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottles◆洗瓶机出瓶用于一体化国外进口微信同步带，接触拨块输送管内服液，正常运行固定安全可靠In pieces out of the bottle inside the whole import synchronous belt, the connection piece of conveying liquid, stable and reliable running◆恒温干燥箱主要采用红外线微波加散热器，装饰管微波加散热器双层线路微波烧水温度表透亮性好；Oven using infrared heating tube, stainless steel heating tube double heating temperature uniformity is good;◆灌装设备轧盖机可供选择配瓷砖泵、不锈钢圆管泵；In pieces filling rolling machine optional ceramic pump, stainless steel pump;◆灌装生产线无瓶止灌，无瓶不轧盖工作。Pieces filling without bottle filling, no bottle no rolling function.◆整线所采用PLC总调控、交流软启动器、触碰屏调控技术设备，启动平稳不靠谱。触碰屏可凸显各手机单机的启动睡眠形态，各调控点的压差、大气压力、风压差、摄氏度等凸显，各按钮开关睡眠形态和错误凸显，错误个人能力诊断仪和错误分折及去掉技巧。使整制造进程提高手动化调控，联线拥有三机自动化平衡点安全装置，确保制造均衡性不靠谱。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. The whole production process to achieve automatic control, on-line has the compressors control balancing device, ensure production is balanced.可根据消费者的必须，还可供加配：According to the needs of customers, but also available for selection:◆PLC、斯耐德、三菱PLC、台达等茶叶品牌控住系统软件；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气气压、温度及超声心动图波标准、埃尘物体、风量免费在线探测、报警灯、计录、复印操作系统。Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system.◆ORABS、CRABS、灭菌分隔器操作系统。Mixer ORABS, CRABS, aseptic isolator system.

的技术指标：technical parameters

用于规格为Cutting   dimension(ml)	5-25
生产能力production capacity(pcs/min)	350
灌装生产线精度等级Filling accuracy(%)	≤ ± 2.5
灌装线头数Fillingheads	16
轧盖头数Number of rolling   curtain	单刀20头
轧盖达标率Rolling cover   percent of pass(%)	≥ 99
总重量total weight(kg)	7500
外形尺寸boundary dimension(mm)	9920 × 2003 × 2150
